RFID system components

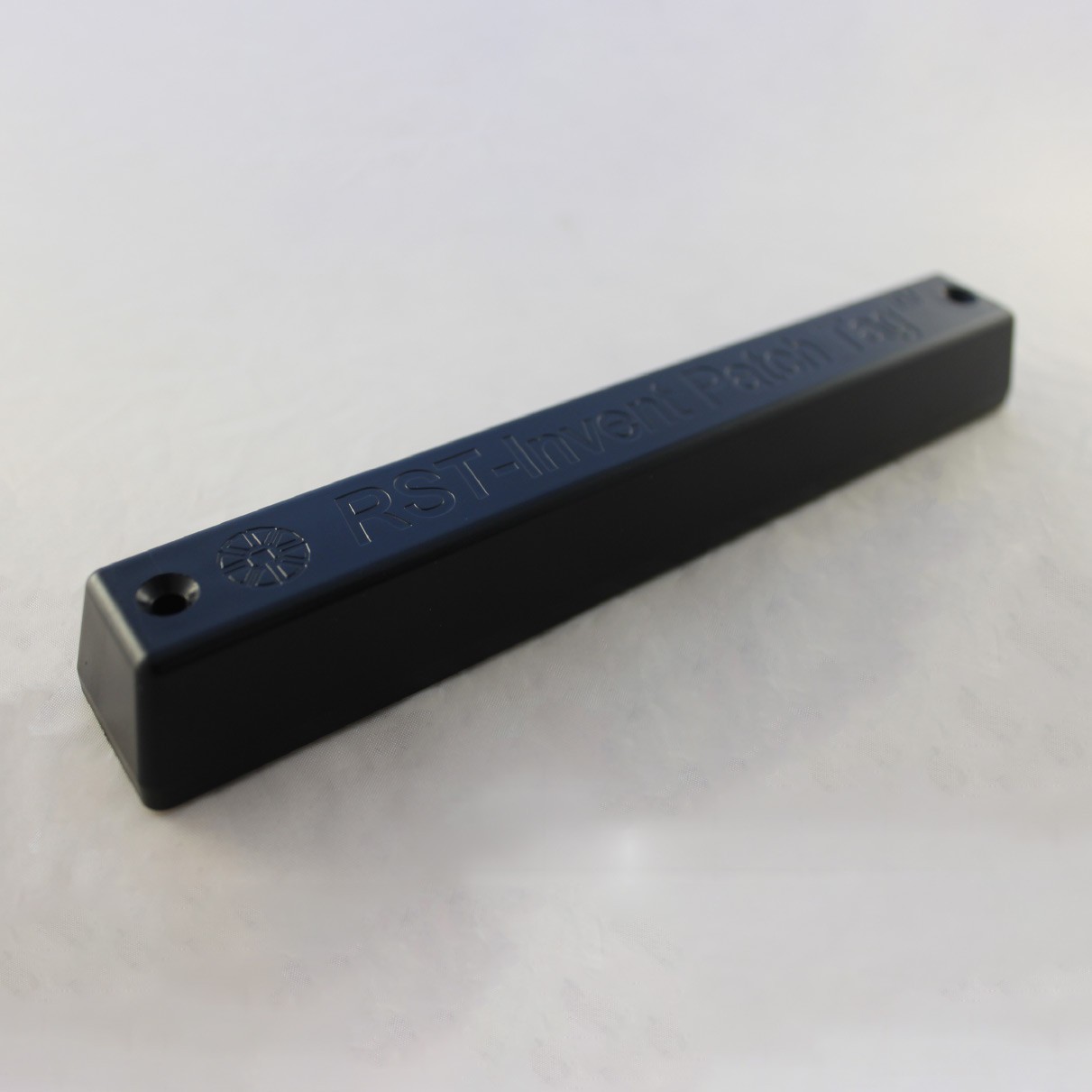

PatchTag RFID tag (for marking power line towers)
Enclosed universal tag with a large registration distance of more than 20 meters, mounted on metal objects. Designed to work in extreme conditions of the far north.

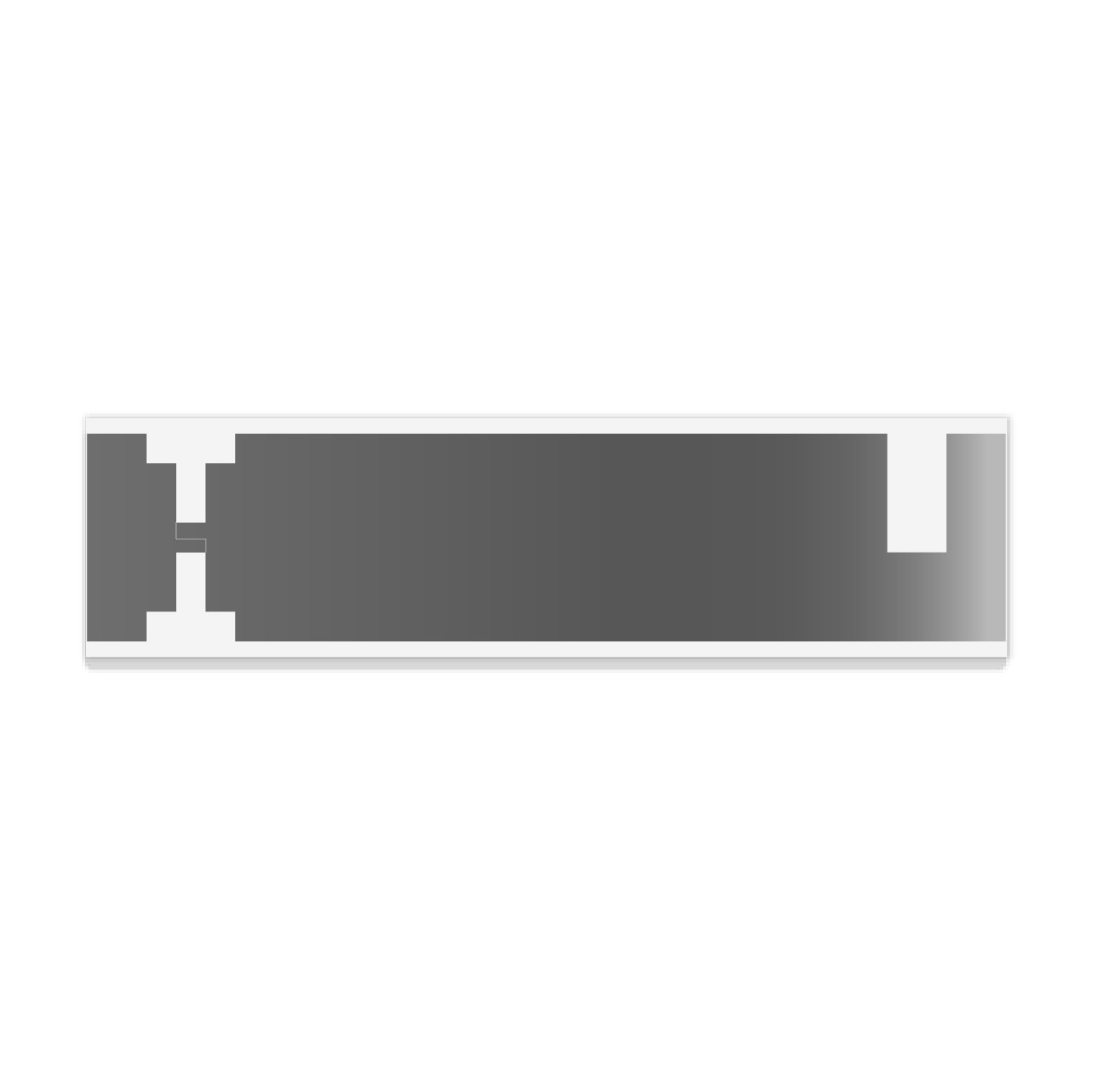

TargetTag RFID tag (for marking transformer substation units)
The label is intended for marking metal-containing products. For error-free reading of the RFID tag, the antenna is located in an elastic case on a special adhesive base. Distance of registration is 4 meters.
After marking fixed assets, each RFID tag is assigned an item nomenclature item from the information system
Mobile RFID readers (for identifying RFID tags in conditions without access to power sources, as well as outdoors)
To conduct an inventory, search and write-off of fixed assets of the enterprise, mobile RFID readers are used. As a result of the actions taken, a report is generated on the correspondence of information from the information system to the actual presence of objects on the site. Also, if the reader detects objects that are irrelevant to this location, the system will automatically notify the user of this and send a notification to the IS
Maintenance and Repair
Implementation of RFID technology will provide real-time monitoring of maintenance and repair. The fact of servicing the facility, the time and name of the work performed are recorded at the time of execution, both in the Information System and in the RFID tag of the facility. The enterprise ACS database provides storage of detailed operation history of each marked object.
The use of radio frequency tags in conjunction with a clear repair policy of the company allows you to track the deterioration of power equipment and timely repair or replace the necessary components of the power system, while minimizing the human factor.
Control of tenants of electric grid facilities
Cell phones fully work only as long as there is a signal from the network. Cellular coverage is created from antennas located at the base stations of the operator. Like any equipment, mobile communications are powered by electricity. In the event of a power failure to the base station, the network will completely shut down. Therefore, to ensure the smooth operation of the network, mobile operators place their equipment at the facilities of electric grid companies, including power transmission towers.
The RST-Invent RFID solution will exclude the possibility of illegal connection and determine the authenticity of the ownership of mobile communication equipment to the operator or Internet service provider that has entered into a lease for the energy facility.
Facilities:
- Legalization of connection and laying of lines during the audit “in the fields”
- Conducting a comprehensive inventory of routes and equipment
- Determination of affiliation and nomenclature in the field
- Determination of the reliability of belonging to a particular operator
